PREFIX ex:
PREFIX geo:
PREFIX owl:
PREFIX rdf:
PREFIX rdfs:
PREFIX xsd:

ex:Army rdf:type owl:Class;
rdfs:comment “A class representing army.”@en;
rdfs:label “Army” .

ex:hasArmy rdf:type owl:ObjectProperty;
rdfs:comment “The player has army.”@en , “The city has army.”@en;
rdfs:domain ex:Player , ex:City;
rdfs:label “has army”;
rdfs:range ex:Army .

ex:City rdf:type owl:Class;
rdfs:comment “A class representing city.”@en;
rdfs:label “City” .

ex:hasPlayer rdf:type owl:ObjectProperty;
rdfs:comment “The army has player.”@en;
rdfs:domain ex:Army;
rdfs:label “has player”;
rdfs:range ex:Player .

ex:hasCity rdf:type owl:ObjectProperty;
rdfs:comment “The army has city.”@en;
rdfs:domain ex:Army;
rdfs:label “has city”;
rdfs:range ex:City .

geo:hasGeom rdf:type owl:DatatypeProperty;
rdfs:comment “The city has geom.”@en;
rdfs:domain ex:City;
rdfs:label “has geom”;
rdfs:range geo:wktLiteral .

ex:hasConnection rdf:type owl:ObjectProperty;
rdfs:comment “The city has connection.”@en;
rdfs:domain ex:City;
rdfs:label “has connection”;
rdfs:range ex:City .

geo:hasCrs rdf:type owl:DatatypeProperty;
rdfs:comment “The city has crs.”@en;
rdfs:domain ex:City;
rdfs:label “has crs”;
rdfs:range .

ex:hasName rdf:type owl:DatatypeProperty;
rdfs:comment “The army has name.”@en , “The player has name.”@en , “The city has name.”@en;
rdfs:domain ex:Army , ex:Player , ex:City;
rdfs:label “has name”;
rdfs:range xsd:string .

ex:hasProduction rdf:type owl:DatatypeProperty;
rdfs:comment “The city has production.”@en;
rdfs:domain ex:City;
rdfs:label “has production”;
rdfs:range xsd:integer .

ex:hasSize rdf:type owl:DatatypeProperty;
rdfs:comment “The army has size.”@en;
rdfs:domain ex:Army;
rdfs:label “has size”;
rdfs:range xsd:integer .

ex:Player rdf:type owl:Class;
rdfs:comment “A class representing player.”@en;
rdfs:label “Player” .

ex:hasEmail rdf:type owl:DatatypeProperty;
rdfs:comment “The player has email.”@en;
rdfs:domain ex:Player;
rdfs:label “has email”;
rdfs:range xsd:string .

# On windows start a console in Administrator mode
cmd

# Go to the JVM directory (For example)
cd C:\Program Files\Java\jdk1.8.0_351\jre\lib\security

# Add cert.crt to JVM
keytool -importcert -file cert.crt -keystore cacerts -storepass changeit -noprompt -alias alias

This evening i deployed a new Raspberry Pi with the following software:
– Debian 6.12.17-v8+ (64Bits)
– HaProxy 2.6.12
– Letsencrypt (Latest version)

This new Reverse Proxy node is replacing a very old Raspberry Pi which was running for more then 9 years.

JSON API’s
/api/1/vitals
/api/1/wifi_status
/api/1/lifetime
/api/1/version
/tedapi/v1

HTTP API
/service

See also here

RDF Graph example (Query language: SPARQL)

As a framework for representing the Web, Resource Description Framework (RDF) captures structure using a triple, the basic unit in RDF. A triple is a statement with three elements: two nodes connected by an edge (also known as a relationship). Each triple is identified by a Uniform Resource Identifier (URI) as subject-predicate-object:

– The subject is a resource (node) in the graph;
– The predicate represents an edge (relationship)
– The object is another node or a literal value.

More information:
https://rdf4j.org/documentation/tutorials/getting-started/

Property Graph example (Query Language: Cypher)

Information is organized as nodes, relationships, and properties in a property graph. Nodes are tagged with one or more labels, identifying their role in the network. Nodes can also store any number of properties as key-value pairs. Relationships provide directed, named connections between two nodes. Relationships always have a direction, a type, a start node, and an end node, and they can have properties, just like nodes. Although relationships are always directed, they can be navigated efficiently in either direction.

What is the difference between SPARQL and Cypher Query Language?
– SPARQL is the query language for accessing data in the Resource  description Framework (RDF) GRAPH database.
– Cypher is the corresponding language for the data represented in property GRAPH database

More information:
https://neo4j.com/blog/rdf-vs-property-graphs-knowledge-graphs/

INSERT
CREATE (diana:Person {name: “Diana”})
CREATE (melissa:Person {name: “Melissa”, twitter: “@melissa”})
CREATE (xyz:Company {name: “XYZ”})
CREATE (diana)-[:WORKS_FOR]->(xyz)
CREATE (diana)-[:IS_FRIENDS_WITH]->(melissa)

UPDATE
MATCH (p:Person {name: ‘Diana’}) SET p.birthdate = date(‘1980-01-01’)
MATCH (:Person {name: ‘Diana’})-[rel:WORKS_FOR]-(:Company {name: ‘XYZ’}) SET rel.startYear = date({year: 2018})

DELETE
MATCH (j:Person {name: ‘Diana’})-[r:IS_FRIENDS_WITH]->(m:Person{name: ‘Melissa’}) DELETE j,r,m

SELECT
MATCH (p:Product) RETURN p.productName, p.unitPrice ORDER BY p.unitPrice DESC LIMIT 10;

INSERT

PREFIX plaat: <http://www.plaatsoft.nl/>
INSERT DATA {
<http://leerling/1> plaat:firstName “Kees”.
<http://leerling/2> plaat:firstName “Jan”.
<http://leerling/3> plaat:firstName “Piet”.
<http://leerling/4> plaat:firstName “Klaas”.
<http://school/1> plaat:name “Bospark”.
<http://school/1> plaat:level “LTS”.
<http://school/1> plaat:city “Alphen aan den Rijn”.
<http://school/2> plaat:name “Lammerschans”.
<http://school/2> plaat:level “MTS”.
<http://school/2> plaat:city “Leiden”.
<http://school/3> plaat:name “Hogeschool van Utrecht”.
<http://school/3> plaat:level “HTS”.
<http://school/3> plaat:city “Utrecht”.
<http://leerling/1> plaat:school <http://school/1>.
<http://leerling/1> plaat:school <http://school/2>.
<http://leerling/1> plaat:school <http://school/3>.
<http://leerling/2> plaat:school <http://school/1>.
<http://leerling/3> plaat:school <http://school/2>.
}

QUERY
# Show all leerlingen of school1
PREFIX plaat: <http://www.plaatsoft.nl/>
SELECT ?x ?firstName
WHERE
{
?x plaat:firstName ?firstName.
?x plaat:school <http://school/1>
}

DELETE
PREFIX plaat: <http://www.plaatsoft.nl/>
DELETE { ?x plaat:firstName ‘Kees’ }
WHERE { ?x plaat:firstName ‘Kees’ }

UPDATE (SPARQL use delete / insert pattern)
PREFIX plaat: <http://www.plaatsoft.nl/>
DELETE { ?x plaat:firstName ‘Kees’ }
INSERT { ?x plaat:firstName ‘William’ }
WHERE { ?x plaat:firstName ‘Kees’ }

Today i have migrated most of my websites to new hardware:
– Raspberry Pi 4B (2GB) / 32GB SDCard.

I have also upgrade the following software:
– Operating System to Debian Bookworm (kernel 6.1.0-rpi7-rpi-v8)
– WordPress to v6.4.2
– php to v8.2.7

If you detect any problem, please let me known!

How to failover from Master to Replication node and visa versa

Pi6 192.168.2.106 (MASTER)

Pi7 192.168.2.107 (REPLICATION)

Make Replication node master

# Goto pi7

su postgres

/usr/lib/postgresql/13/bin/pg_ctl -D /data02/data promote
Restore old master

# Goto to pi6

sudo cp /data02/data/*.conf ../.

/usr/lib/postgresql/13/bin/pg_ctl -D /data02/data stop

rm -rf /data02/data/*

/usr/lib/postgresql/13/bin/pg_basebackup --pgdata=/data02/data --format=p --write-recovery-conf --checkpoint=fast --label=mffb --progress --host=pi7 --port=5432 --username=plaatsoft

rm /data02/data/standby.signal

/usr/lib/postgresql/13/bin/pg_ctl -D /data02/data start

psql -c "select * from pg_create_physical_replication_slot('standby1_slot');"
# Goto to pi7

sudo cp /data02/data/*.conf ../.

/usr/lib/postgresql/13/bin/pg_ctl -D /data02/data stop

rm -rf /data02/data/*

/usr/lib/postgresql/13/bin/pg_basebackup --pgdata=/data02/data --format=p --write-recovery-conf --checkpoint=fast --label=mffb --progress --host=pi6 --port=5432 --username=plaatsoft

/usr/lib/postgresql/13/bin/pg_ctl -D /data02/data start
Check replication
CHECK MASTER NODE

postgres=# \x

postgres=# SELECT * FROM pg_stat_replication;
postgres=# select pg_is_in_recovery();

pg_is_in_recovery

-------------------

f

(1 row)
CHECK REPLICATION NODE

postgres=# \x

postgres=# SELECT * FROM pg_stat_wal_receiver;
postgres=# select pg_is_in_recovery();

pg_is_in_recovery

-------------------

t

(1 row)


Execute on each Postgresql node the following actions

# Create check script
sudo vi /usr/lib/postgresql/13/bin/pgsqlchk

#!/bin/bash
# This script checks if a postgres server is healthy running on localhost. It will return:
# "HTTP/1.x 200 OK\r" (if postgres is running smoothly)
# - OR -
# "HTTP/1.x 500 Internal Server Error\r" (else)
# The purpose of this script is make haproxy capable of monitoring postgres properly
# It is recommended that a low-privileged postgres user is created to be used by this script.
# For eg. create user healthchkusr login password 'hc321';

PGBIN=/usr/pgsql-10/bin
PGSQL_HOST="localhost"
PGSQL_PORT="5432"
PGSQL_DATABASE="postgres"
PGSQL_USERNAME="postgres"
export PGPASSWORD="passwd"
TMP_FILE="/tmp/pgsqlchk.out"
ERR_FILE="/tmp/pgsqlchk.err"

# We perform a simple query that should return a few results

VALUE=`/usr/lib/postgresql/13/bin/psql -t -h localhost -U postgres -p 5432 -c "select pg_is_in_recovery()" 2> /dev/null`
# Check the output. If it is not empty then everything is fine and we return something. Else, we just do not return anything.

if [ $VALUE == "t" ]
then
/bin/echo -e "HTTP/1.1 206 OK\r\n"
/bin/echo -e "Content-Type: Content-Type: text/plain\r\n"
/bin/echo -e "\r\n"
/bin/echo "Standby"
/bin/echo -e "\r\n"
elif [ $VALUE == "f" ]
then
/bin/echo -e "HTTP/1.1 200 OK\r\n"
/bin/echo -e "Content-Type: Content-Type: text/plain\r\n"
/bin/echo -e "\r\n"
/bin/echo "Primary"
/bin/echo -e "\r\n"
else
/bin/echo -e "HTTP/1.1 503 Service Unavailable\r\n"
/bin/echo -e "Content-Type: Content-Type: text/plain\r\n"
/bin/echo -e "\r\n"
/bin/echo "DB Down"
/bin/echo -e "\r\n"
fi

# Make script executable
sudo chmod a+x /usr/lib/postgresql/13/bin/pgsqlchk

# install xinetd and telnet
sudo apt-get install xinetd telnet -y

# Create xinitd file
sudo vi /etc/xinetd.d/pgsqlchk

service pgsqlchk
{
flags = REUSE
socket_type = stream
port = 23267
wait = no
user = nobody
server = /usr/lib/postgresql/13/bin/pgsqlchk
log_on_failure += USERID
disable = no
only_from = 0.0.0.0/0
per_source = UNLIMITED
}

sudo bash -c 'echo "pgsqlchk 23267/tcp # pgsqlchk" >> /etc/services'
sudo systemctl restart xinetd

# Check if service is working
telnet 127.0.0.1 23267

Trying 127.0.0.1...
Connected to 127.0.0.1.
Escape character is '^]'.
HTTP/1.1 206 OK
Content-Type: Content-Type: text/plain
Standby
Connection closed by foreign host.

Execute on HaProxy following actions

# Install HaProxy
sudo apt-get install haproxy -y

sudo vi /etc/hosts
Add pi6 192.168.2.106
Add pi7 192.168.2.107

sudo vi /etc/haproxy/haproxy.cfg

global
    maxconn 100

defaults
    log global
    mode tcp
    retries 2
    timeout client 30m
    timeout connect 4s
    timeout server 30m
    timeout check 5s

listen stats
    mode http
    bind *:10000
    stats enable
    stats refresh 10s
    stats uri /

listen Postgres
    bind *:5432
    option httpchk
    http-check expect status 200
    default-server inter 3s fall 3 rise 2 on-marked-down shutdown-sessions
    server pi6 pi6:5432 maxconn 100 check port 23267
    server pi7 pi7:5432 maxconn 100 check port 23267

systemctl restart haproxy

Check HaProxy

# Install postgres client
sudo apt-get install postgresql-client

# Start psql client
psql -h localhost -U postgres

postgres=# select pg_is_in_recovery();
pg_is_in_recovery
-------------------
f
(1 row)

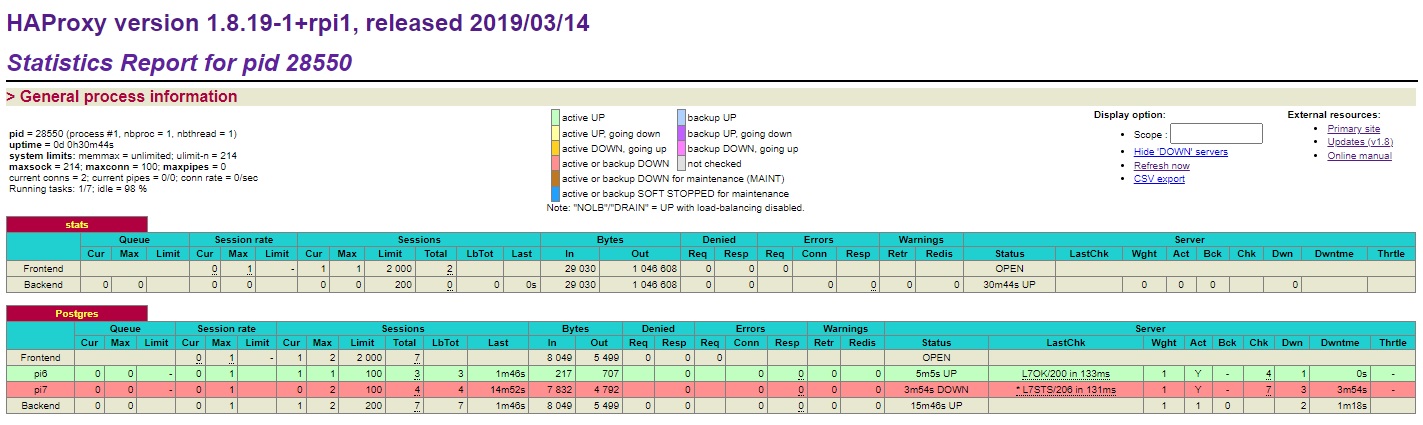

Check HaProxy portal http://192.168.2.107:5000
