PlaatEnergy

PlaatEnergy collects information from your Energy meter, Gas meter, Solar converter and AstroPi (weather station) and process all data. With a web GUI all data is presented.

Key Features:
– Records every minute energy and gas usage (RS232 serial connection)
– Records every minute solar energy delivered (TCP/IP connection)
– Records every minute air temperature, air humidity and air pressure (GPIO connection)
– Show real-time, historical and forecast data in Web GUI
– Show financial data in Web GUI
– Web GUI charts support years, year, month, day, minute detail level
– Web GUI charts support detail popup information
– Web GUI support manual measurement corrections
– Web GUI support secure access based on sessionId
– Support up to 3 Solar converters
– CSV or SQL data export
– and much more!

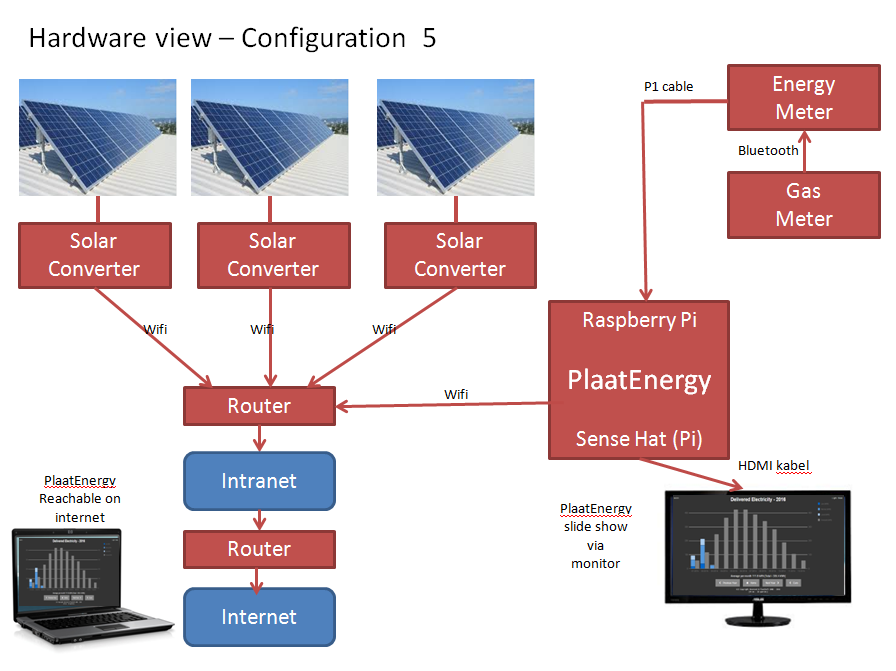

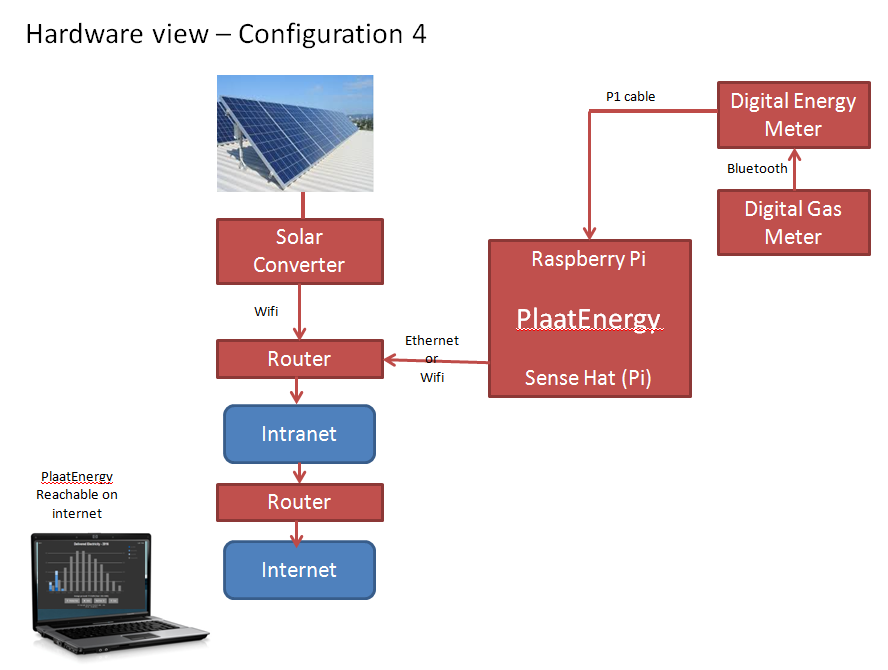

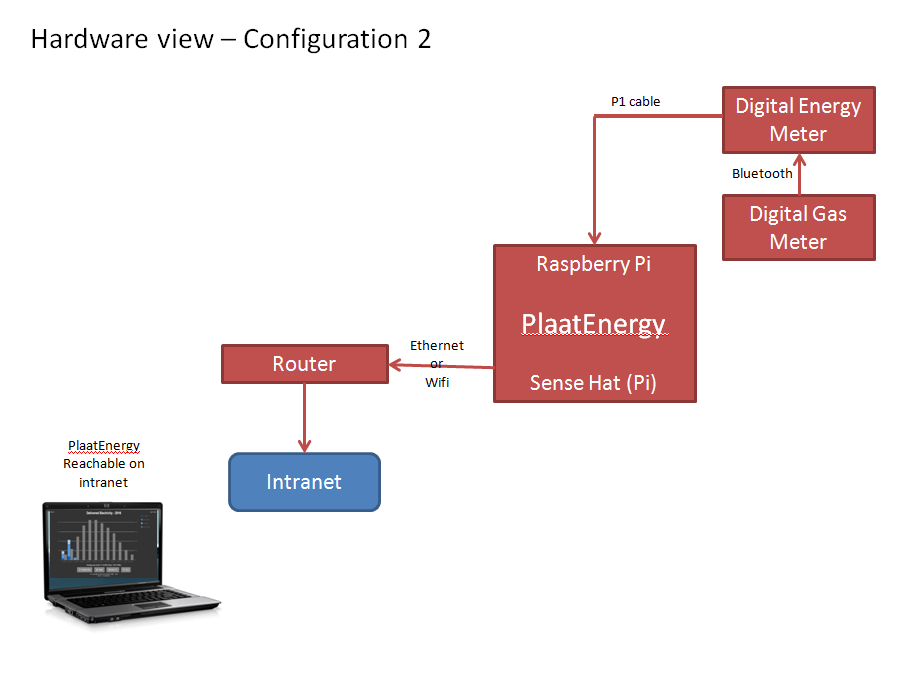

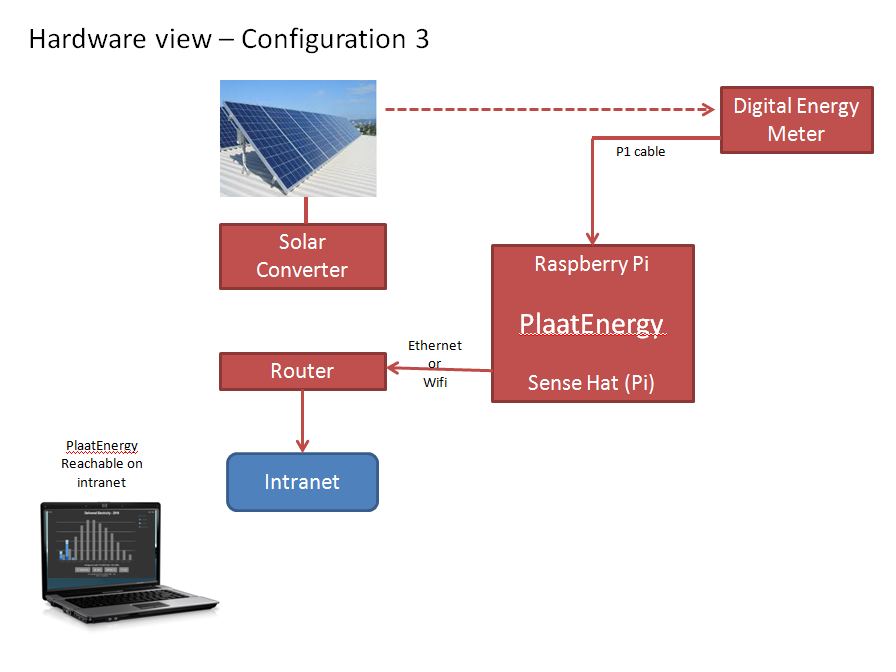

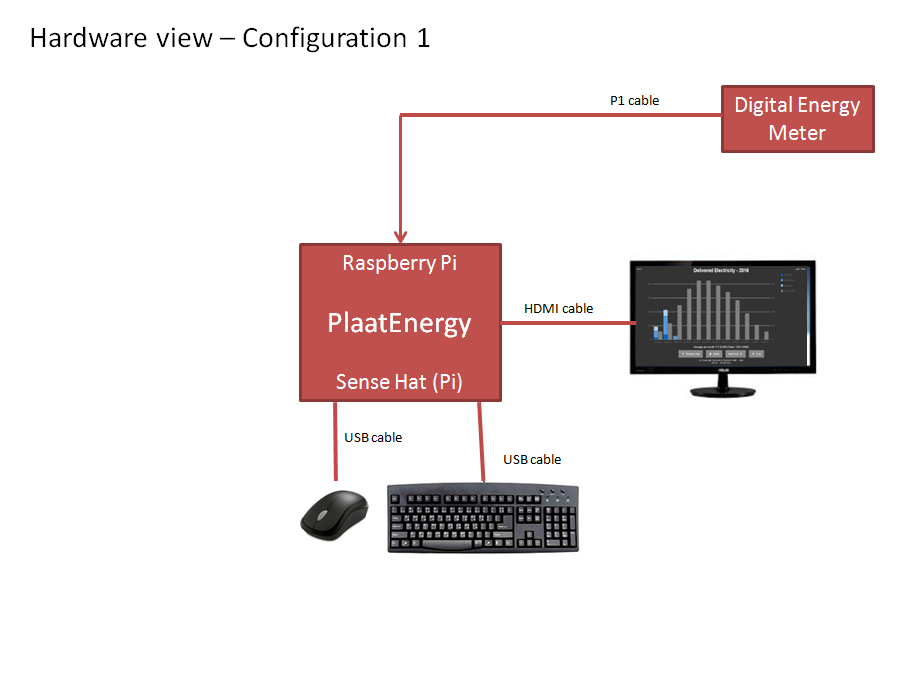

Needed hardware
– Raspberry Pi (for example model 3B). See here!
– USB to RS232 P1 cable. See here!
– Optional: Pi Sense Hat. See here!
– Optional: Solar Converter + solar panels. See here!
– Digital Energy Meter with P1 port (1)
– Digital Gas Meter (1)

(1) Call you energy supplier (Eneco, Essent, Nuon, E-on, etc..) to replace free-of-charge your analog energy and gas meter with digital ones. 🙂

Release Notes

Click here for the release notes

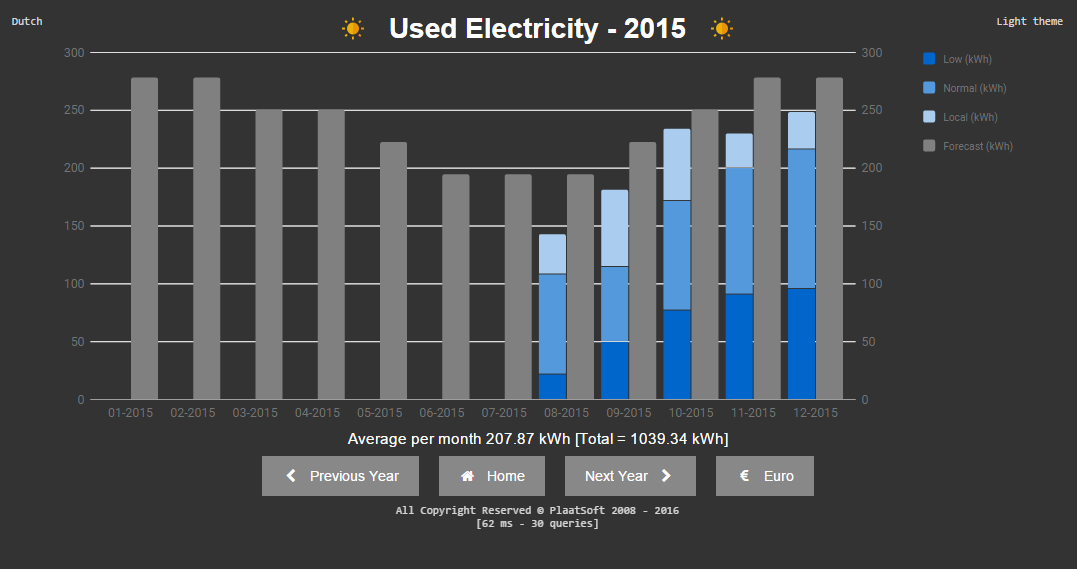

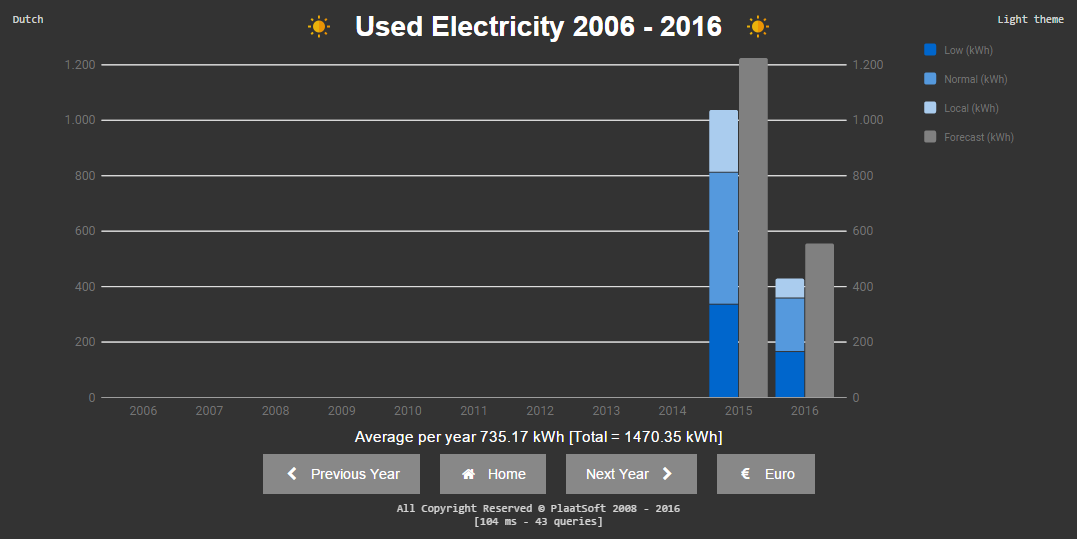

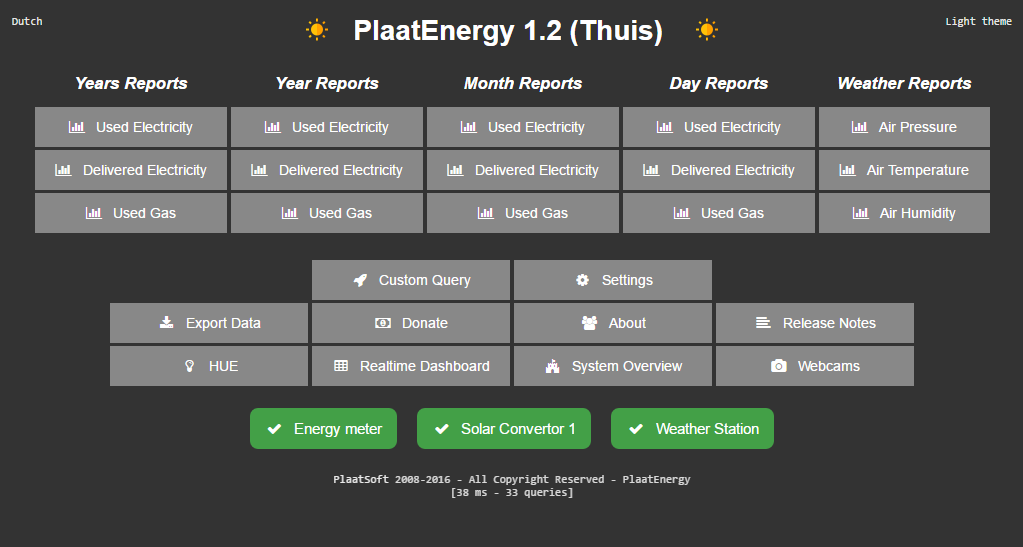

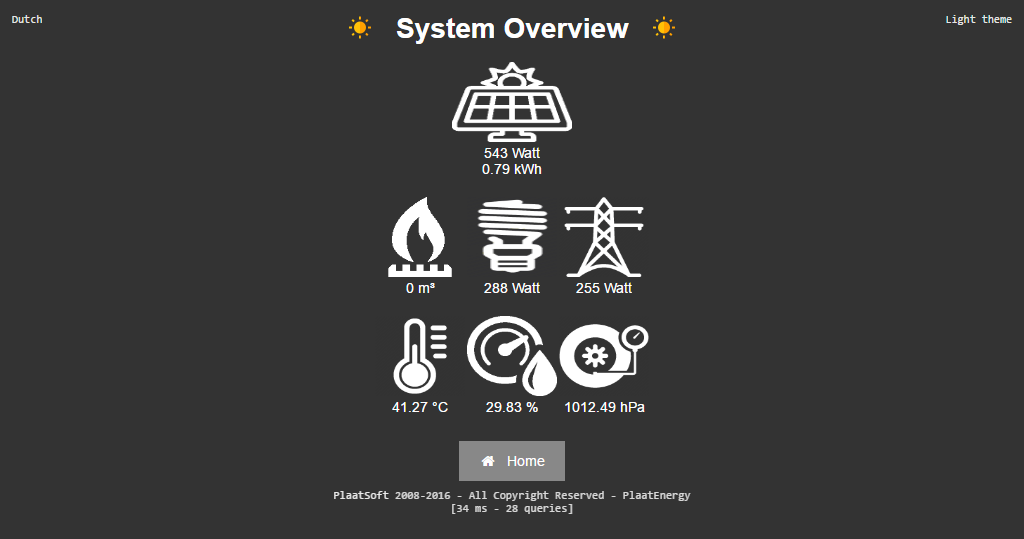

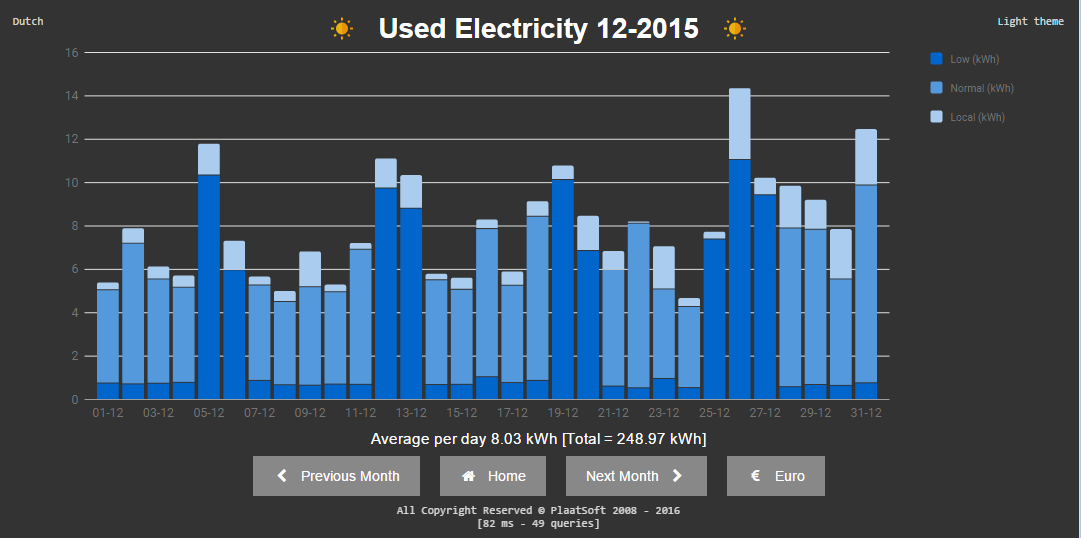

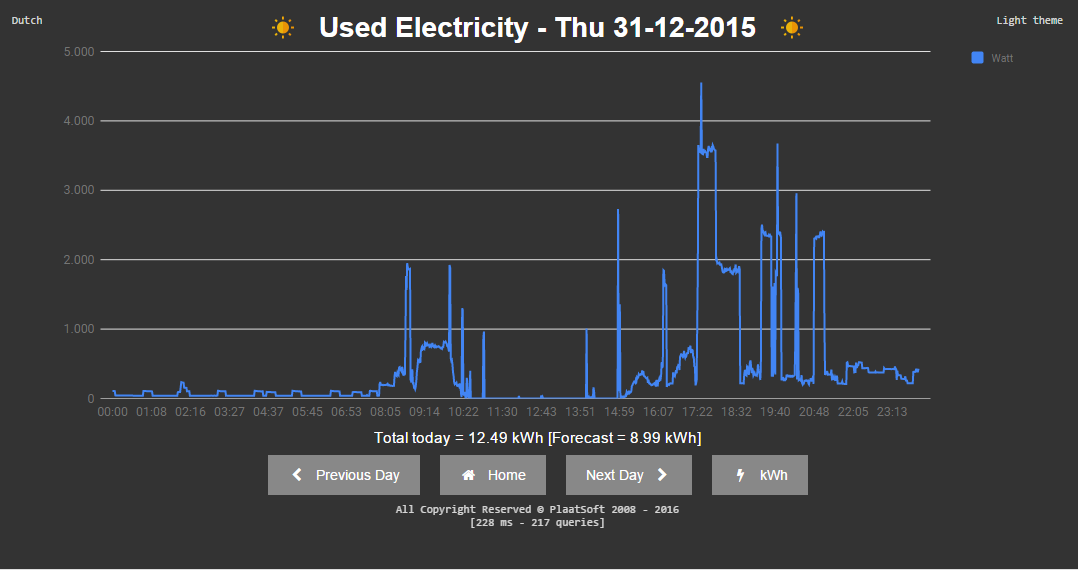

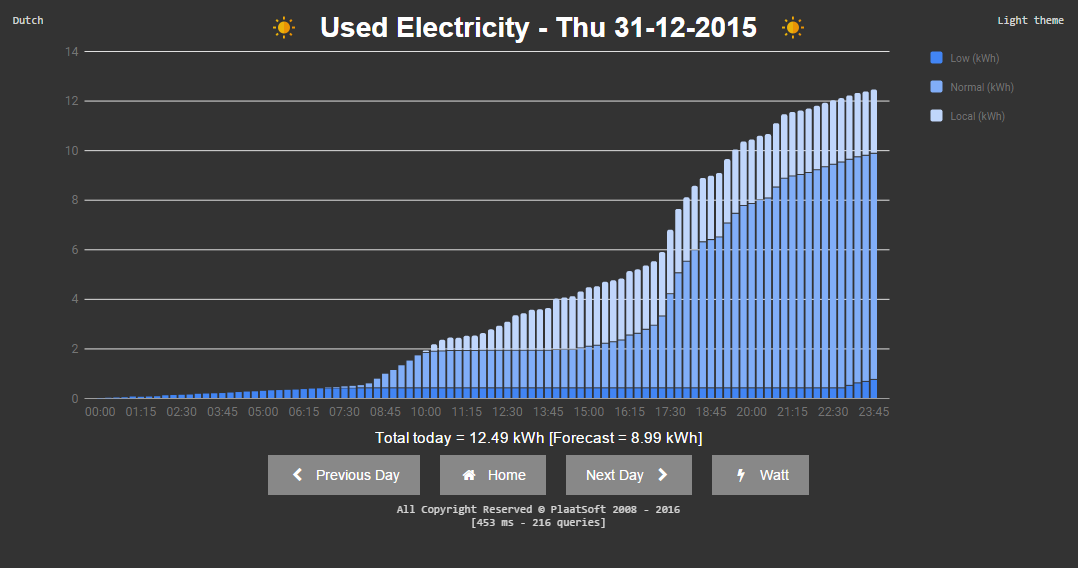

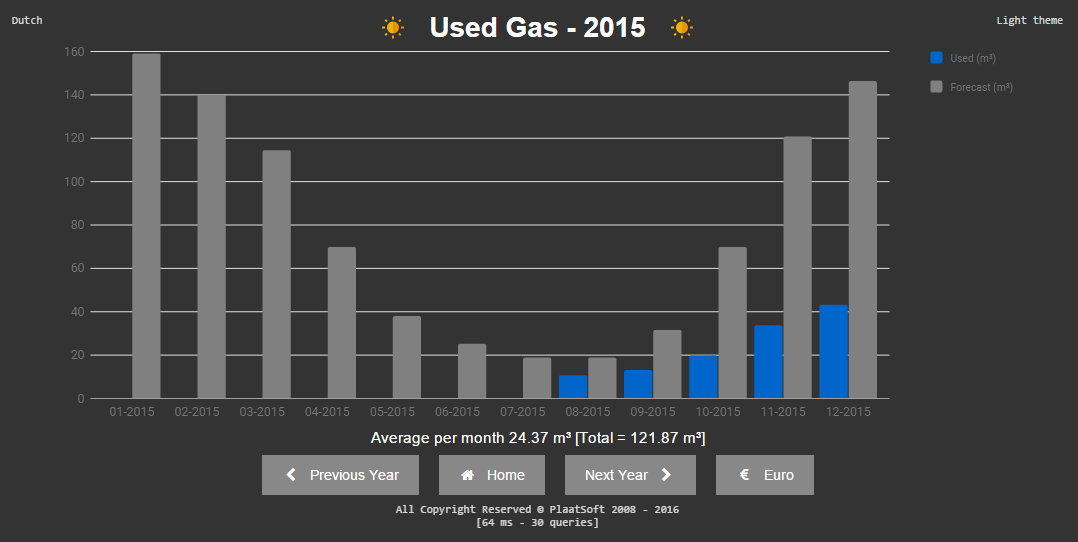

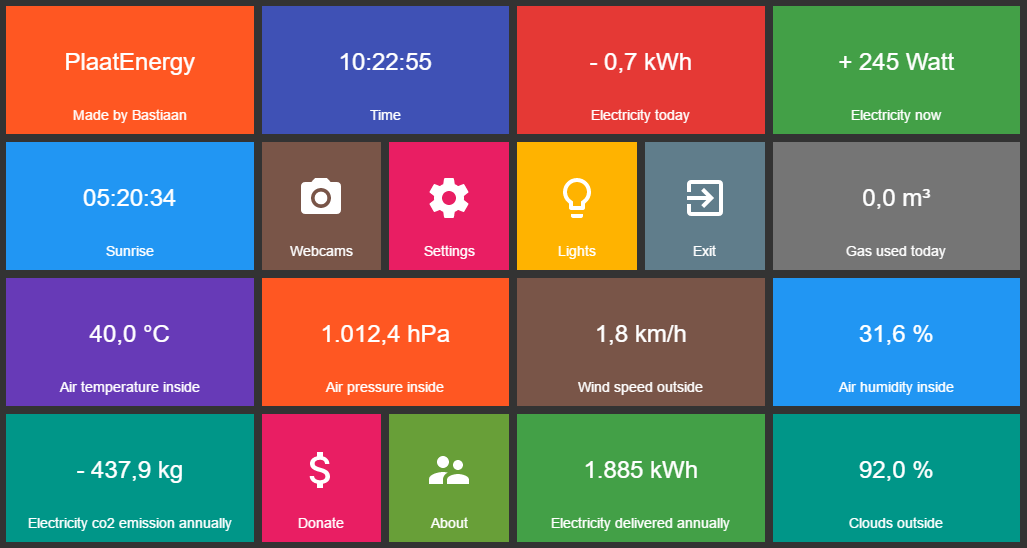

Screenshots

Browser Support

I have tested and optimised the webGUI for the following internet browsers:
– Internet Explorer
– Firefox
– Chrome

Downloads

If you are interested in this software, just click below to download the latest version.

  plaatenergy.zip (816.9 KiB, 1,333 hits)


  PlaatEnergy_Design.pptx (2.5 MiB, 1,186 hits)

Installation Manual

Execute the following steps to install the software on your Raspberry Pi.


### Step 1 - Install following depending thirdparty software packages
sudo apt-get install apache2

sudo apt-get install php
sudo apt-get install php-mbstring
sudo apt-get install php-mysql
sudo apt-get install mariadb-server

sudo apt-get install python3
sudo apt-get install python3-serial
python3 -m pip install PyMySQL

### Step 2 - Create mysql plaatenergy database
sudo mysql -u root
CREATE DATABASE plaatenergy;
CREATE USER plaatenergy@localhost IDENTIFIED BY 'plaatenergy';
GRANT ALL ON plaatenergy.* TO plaatenergy@localhost;
FLUSH PRIVILEGES;
QUIT;

### Step 3. Download PlaatEnergy from plaatsoft.nl.
Copy zip file to /tmp on raspberry pi
login on the raspberry with user `pi`
cd /var/www/html
sudo cp /tmp/plaatenergy.zip .
sudo unzip *.zip
sudo chmod a+wrx /var/www/html/plaatenergy/backup

### Step 4. Create config.inc with correct database settings
cd /var/www/html/plaatenergy
sudo cp config.inc.sample config.inc

### Step 5. Add the following cron job:
crontab -e
* * * * * cd /var/www/html/plaatenergy; php cron.php
0 0 * * * cd /var/www/html/plaatenergy; php backup.php

### Step 6. Go to http://[raspberry-ip]/plaatenergy

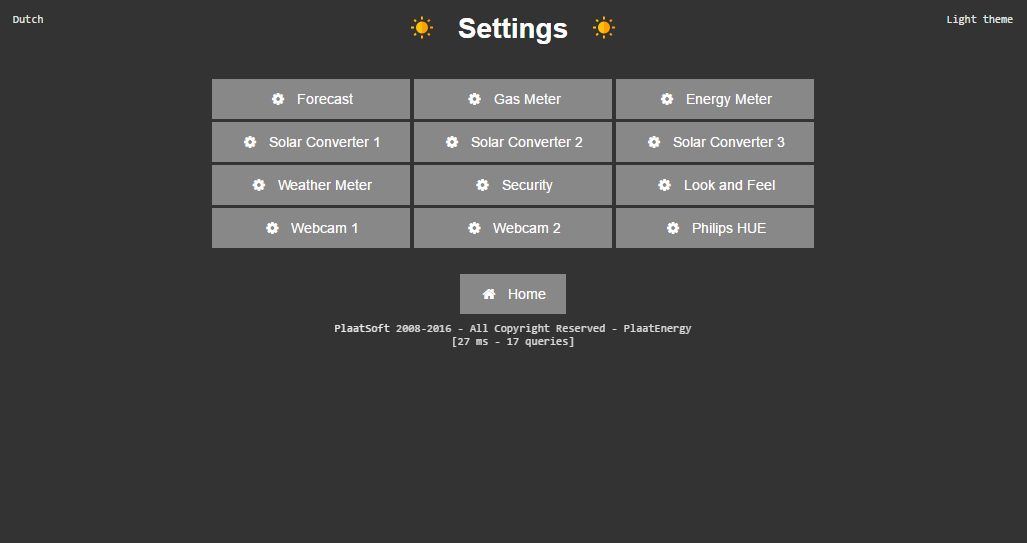

Select setting page and customize plaatenergy to your personal needs!

### Step 7. Installation is now ready
Now every minute the energy, gas, (optional) solar and (optional) weatherstation data is fetch and processed.

If there are any questions please sent an email to info@plaatsoft.nl

Open Source

The checkout the source code here.
